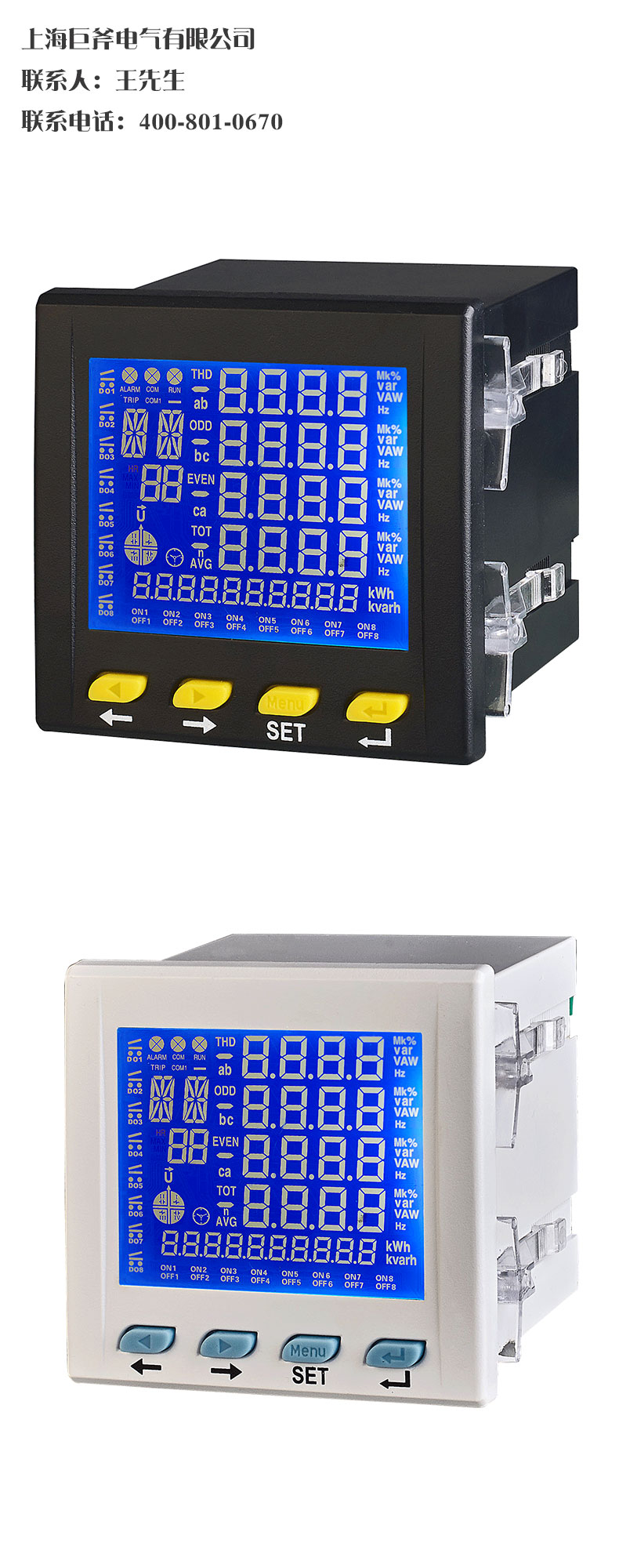

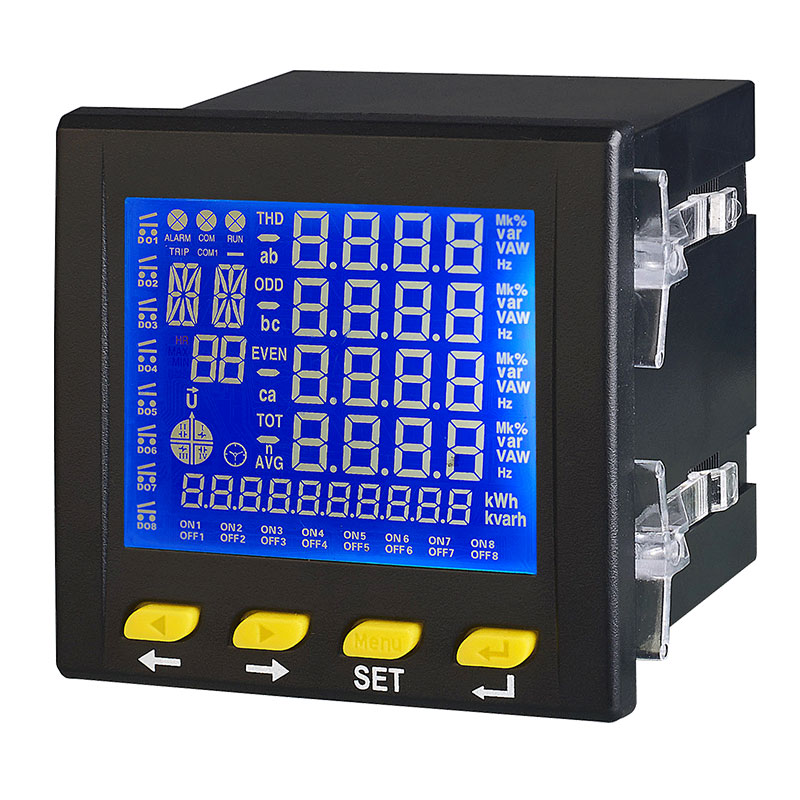

Z系列多功能网络电力仪表能够高精度测量三相电网全部电量参数,并带有通讯接口和电能脉冲输出、四路开关量输入、四路开关量输出和四路模拟量输出功能,可实现本地或远程的开关信号监测和控制功能。具有安装方便、接线简单、维护便利、工程量小、现场可编程设置输入参数等特点,并且能够完成与业界不同PLC,工控计算机的组网通信。产品特点

 Z series of multi-functional network electric power meters can measure all electric parameters of three-phase power grid with high precision. It has communication interface and power pulse output, four-way switch input, four-way switch output and four-way analog output functions. It can realize local or remote switch signal monitoring and control functions. It has the characteristics of convenient installation, simple wiring, convenient maintenance, small amount of work, field programmable setting input parameters, and can complete the network communication with different PLC and industrial computer. Product features

◆测量:三相电压、电流、有功功率、无功功率、功率因数、频率、有功电能、无功电能

◆计量:正反向有功电能,感性容性无功电能

◆显示:三排LED数码管显示,可视度高

◆通讯:RS485通讯, MODBUS-RTU协议

◆输出:四路开关量输出、四路模拟量输出(订货需说明)

输入:可选四路开关量输入(订货需说明)

●扩展:可直接从电流、电压互感器接入信号,现场可编程设置输入参数变比

◆用途:适用于各种进线回路、大容量配出电回路中电参数的完整监测和管理

capacitive reactive power.

◆Display: three row LED digital tube display, visibility is high.

◆Communication: RS485 communication, MODBUS-RTU protocol

◆Output: four switch output, four analog output (order to be specified)

◆Input: optional four switch input.

◆Extension: it can be directly accessed from current and voltage transformers, and programmable parameters can be set up on site.

◆Purpose: it is suitable for complete monitoring and management of electrical parameters in various incoming circuit and large capacity distribution circuit.
